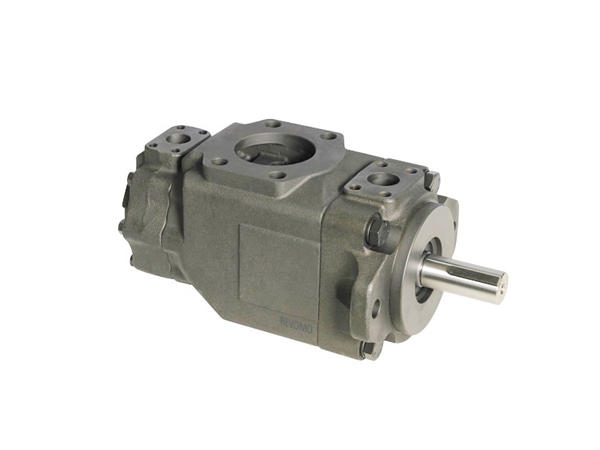

T6C/D/E Single Vane Pump

T6C vane pump

Product Description

High pressure design reduces installation costs and provides extended life at reduced pressure. These vane pumps have been specially designed for high/low circuits. The combination of different cartridges in double and triple pumps allows low flow at high pressure and high flow at lower pressure. This is the intelligent way to optimize your circuit design. The pump also allows a very fast pressure cycle change with a very precise flow repeatability.

Markets:

• Industrial
• Railway

Features & Benefits:

• Reduced Energy Consumption : The high mechanical & volumetric efficiency, typically 94%, reduces heat generation and allows speeds down to 600 RPM at full pressure.
• Lower Noise Level : The wide speed range capability from 600 RPM to 3600 RPM, combined with large size cartridge displacements, will optimize operation for the lowest noise level in the smallest operating envelope.
• Increased Lifetime: Double lip vane concept raises particle contamination resistance. In addition, the low ripple pressure (± 2 bar) reduces piping noise and protects other components in the circuit.
• Ease of Installation: Significantly simplifies installation design by using the same body for all displacements. The port orientation allows customized installation and is ideally suited to restricted access conditions.

Applications:

• Presses
• Injection machines
• Lubrication
• Machines tools

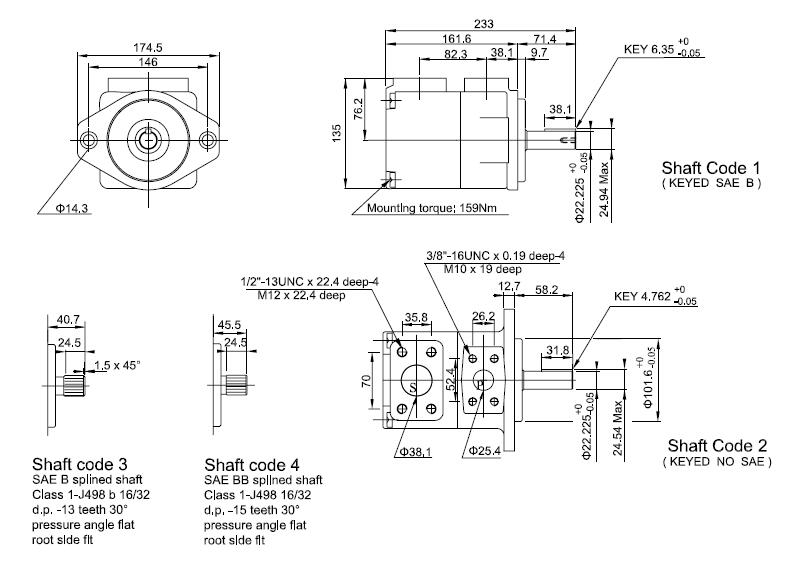

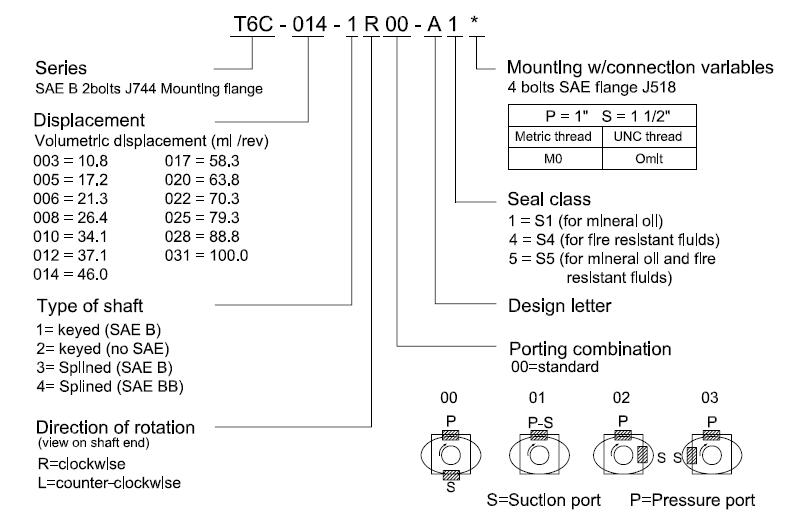

T6C Dimensions

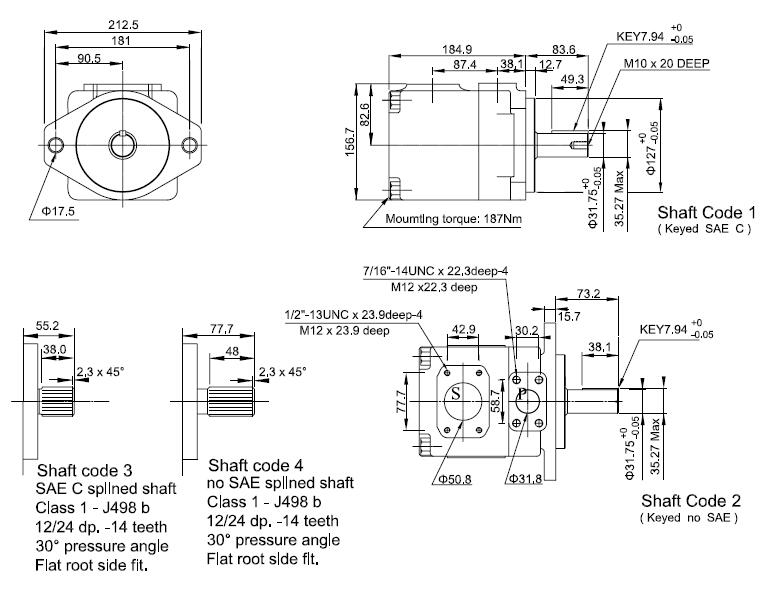

T6D Dimensions

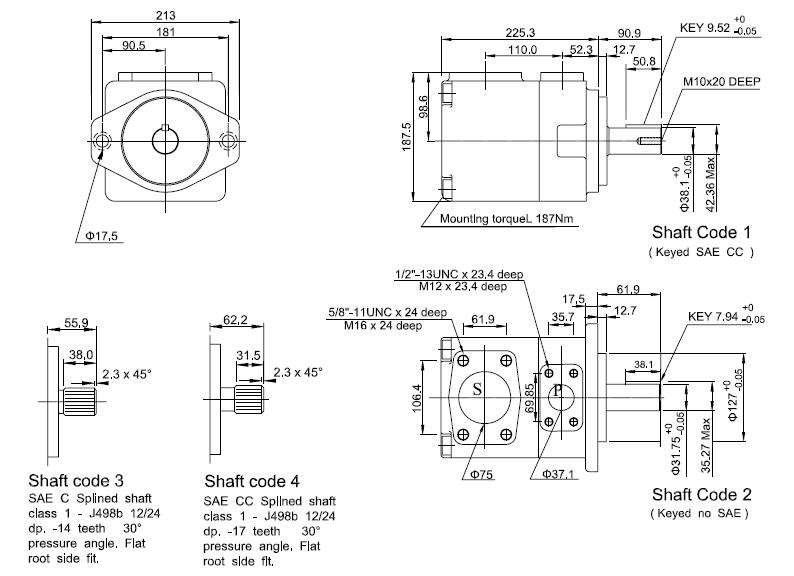

T6E Dimensions

ModelDisplacement (cm³/rev)Max.Pressure ParSpeed
maxmin
T6C17.2 – 70.32752800600
79.32752500600
88.8 -100.02102500600
T6D47.6 – 120.32402500600
136.0 – 145.72402200600
158.02102200600
190.51202200600
T6E132.3 – 227.12402200600
269.8902000600
T6GC17.2 – 70.32752800600
79.32752500600
88.8 – 100.02102500600
