T7** Double Vane Pump - hydraulic pump

Product Description

The high pressure design reduces installation costs and provides extended life at reduced pressure. These vane pumps have been specially designed for high/low circuits. The combination of different cartridges in double and triple pumps allows low flow at high pressure and high flow at lower pressure. This is the intelligent way to optimize your circuit design. The pump also allows a very fast pressure cycle change with a very precise flow repeatability.

Markets:
• Industrial
• Railway

Features & Benefits:
• Reduced Energy Consumption : The high mechanical & volumetric efficiency, typically 94%, reduces heat generation and allows speeds down to 600 RPM at full pressure.
• Lower Noise Level : The wide speed range capability from 600 RPM to 3600 RPM, combined with large size cartridge displacements, will optimize operation for the lowest noise level in the smallest operating envelope.
• Increased Lifetime : Parker’s double lip vane concept raises particle contamination resistance. In addition, the low ripple pressure (± 2 bar) reduces piping noise and protects other components in the circuit.
• Ease of Installation : Parker’s industrial vane pump significantly simplifies installation design by using the same body for all displacements. The port orientation allows customized installation and is ideally suited to restricted access conditions.

Applications:
• Presses
• Injection machines
• Lubrication
• Machines tools

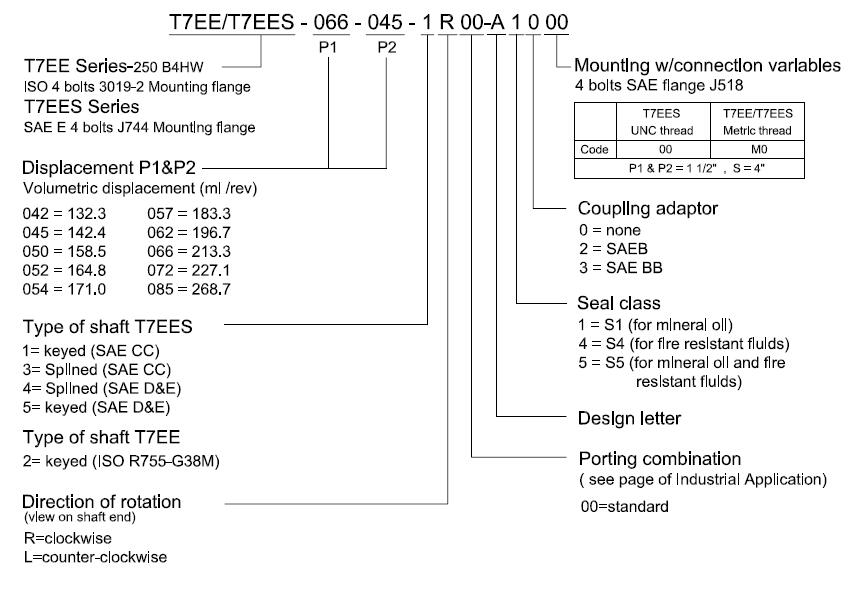

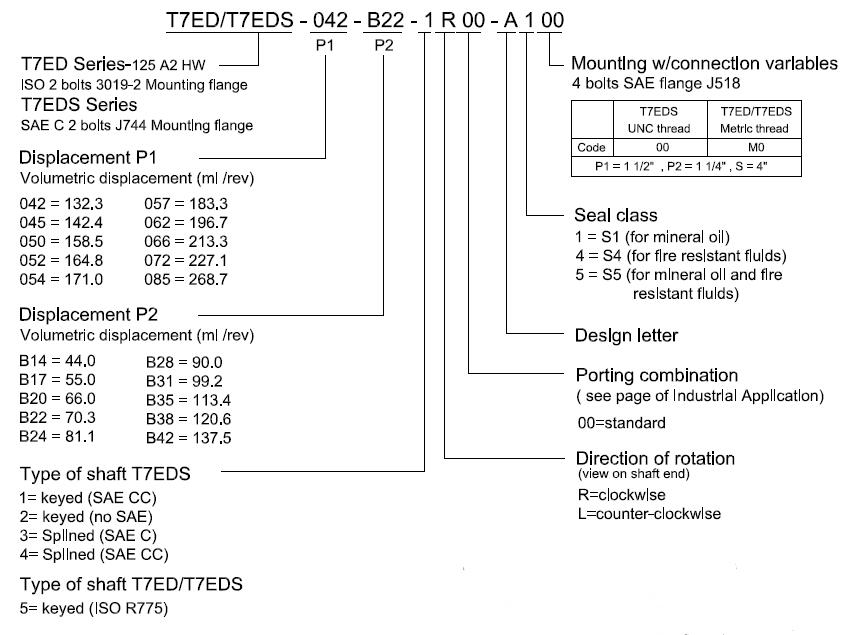

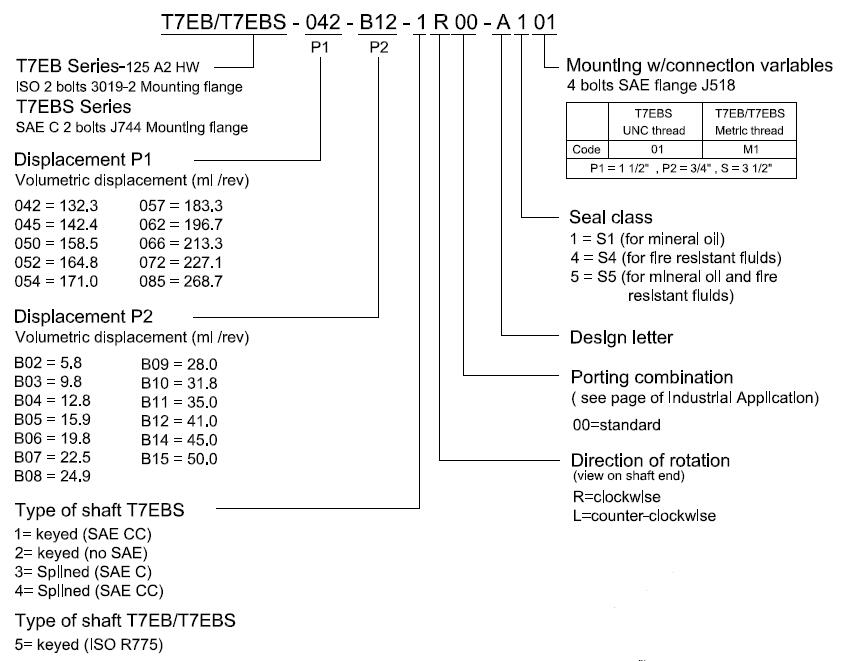

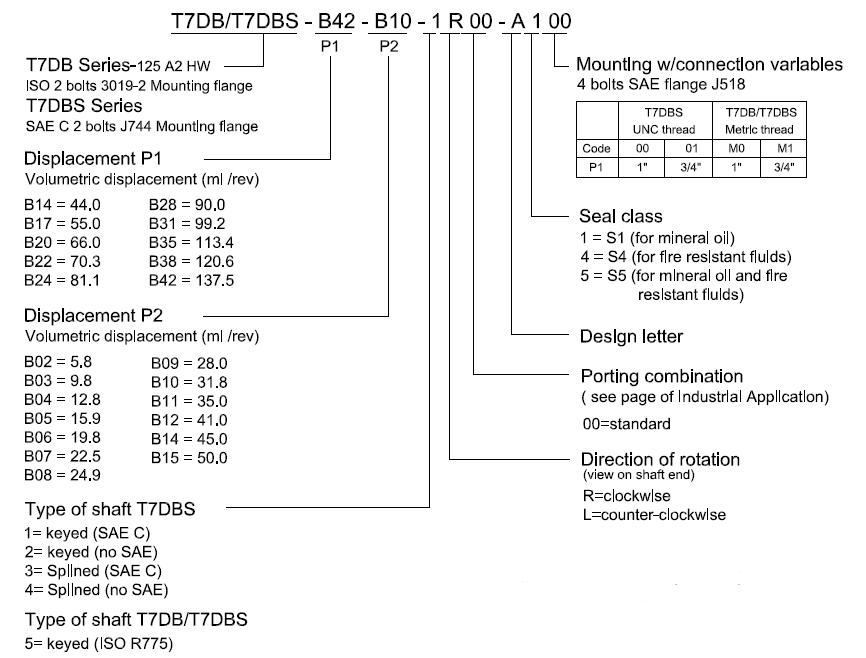

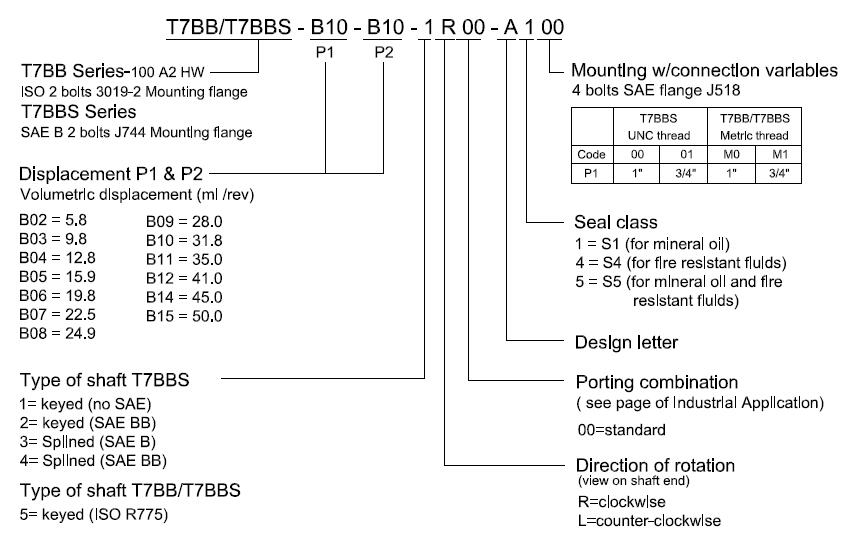

[vc_tta_tabs][vc_tta_section title="Ordering Code" tab_id="2130"]
