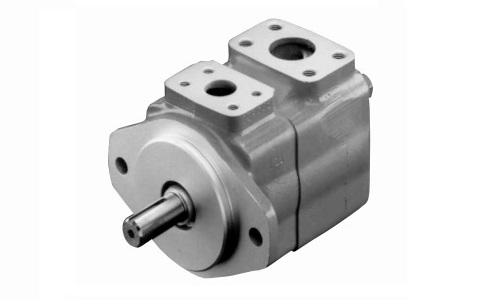

V Series Single Vane Pump

Description:

V series intravane pumps provide volumetric efficiencies of more than 90% and sound levels as low as 62 dB(A) with operating pressures to 207 bar (3000 psi). provide longer life, increased productivity and application versatility. Extremely low sound levels are compatible with the most demanding industrial applications.

Features and Benefits

• High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
• Low noise characteristics inherent in intravane design enhance operator comfort.
• Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
• Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
• Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation flexibility and ease of machine design.

• Ordering Code
• Dimensions
• CHARACTERISTICS

• 20V ordering code:
• 25V ordering code:
• 35V ordering code:
• 45V ordering code:

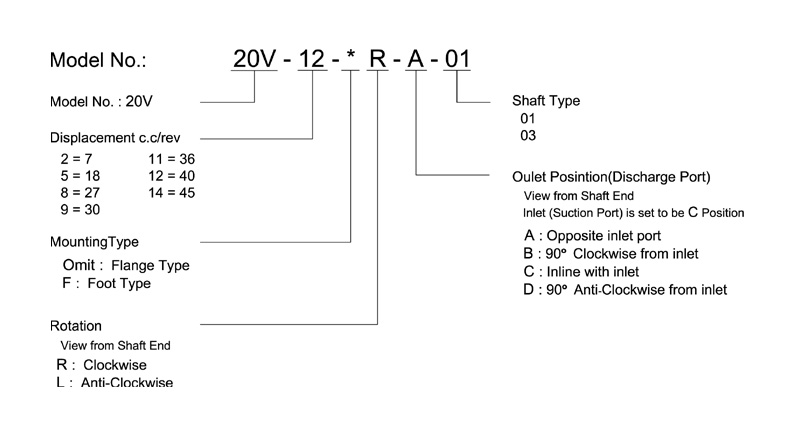

20V ordering code:

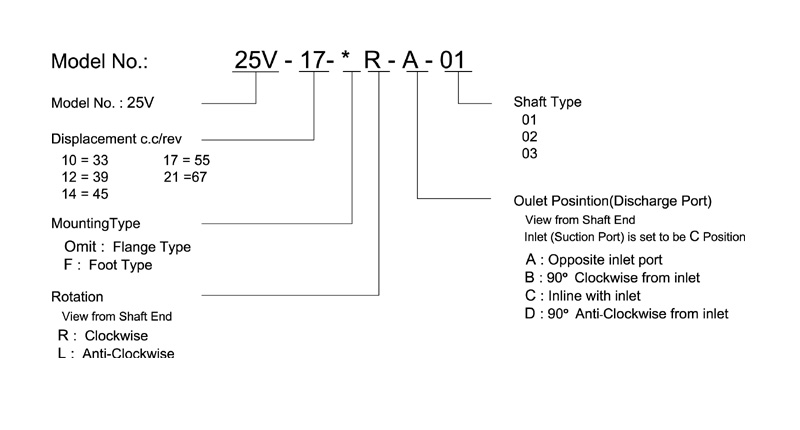

25V ordering code:

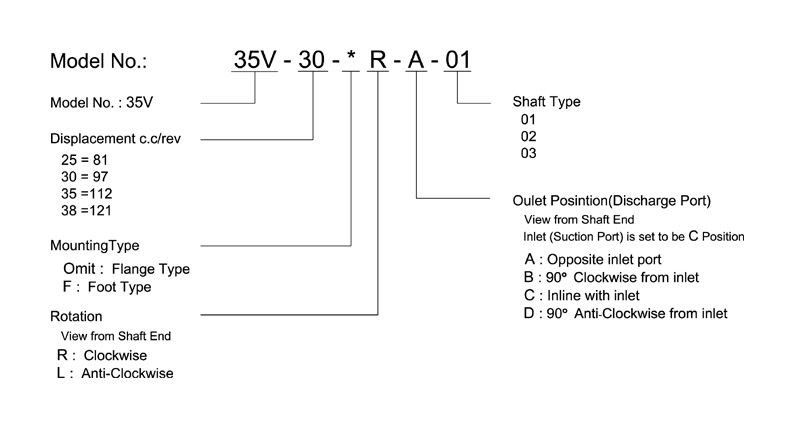

35V ordering code:

45V ordering code:

• 20V dimensions:
• 25V dimensions:
• 35V dimensions:
• 45V dimensions:

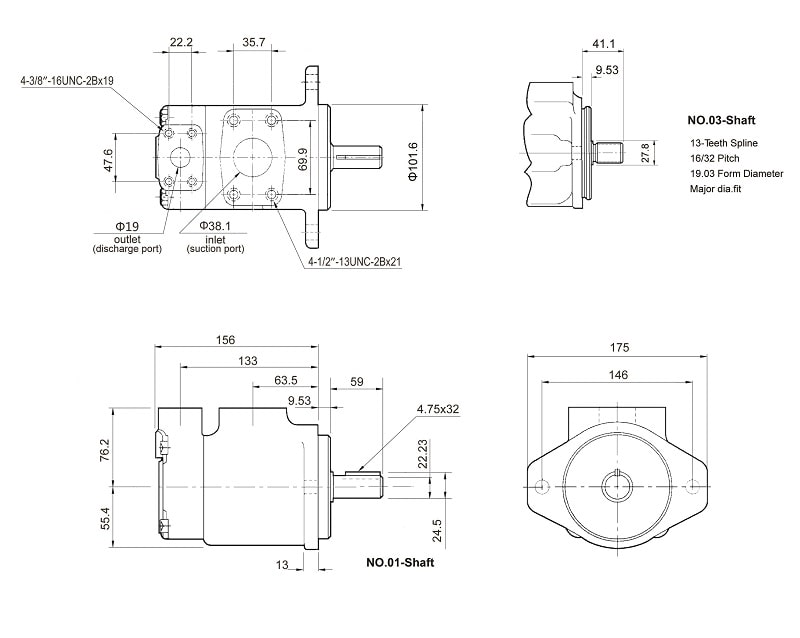

20V dimensions:

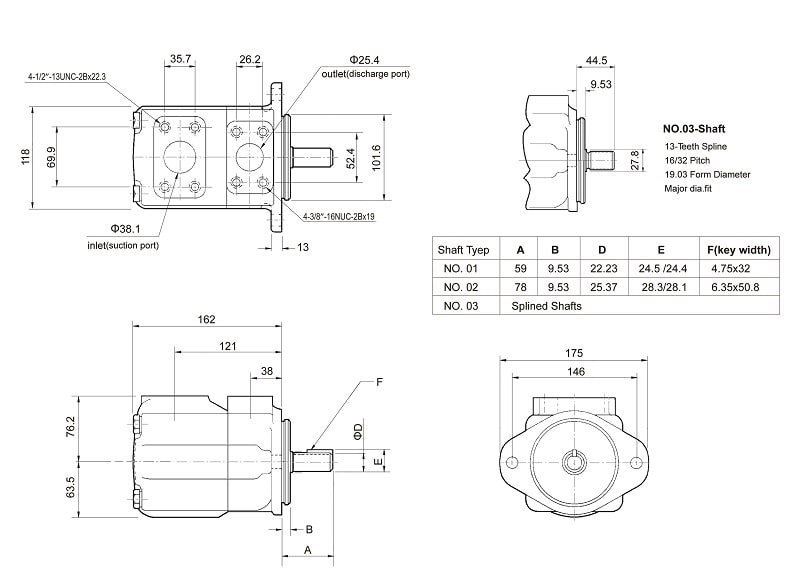

25V dimensions:

35V dimensions:

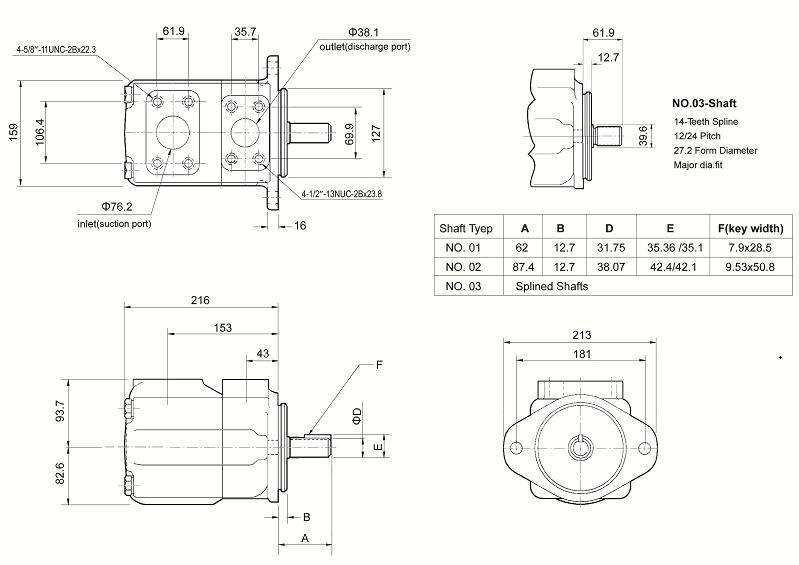

45V dimensions:

Model	Displacement code	Geometric  displacement mL/r	V series		Weight
			Max. speed rpm	Max. pressure MPa	kg
20V	2	7.5	1800	14	12
	5	17		21
	8	27
	9	30
	11	36
	12	40		16
	14	45		14
25V	10	33	1800	17.5	14.8
	12	40
	14	45
	17	55
	21	67
35V	25	81	1800	17.5	22.7
	30	97
	35	112
	38	121
45V	42	138	1800	17.5	34
	45	147
	50	162
	57	180
	60	193
	66	212
	75	237		14
