Description:
VFF series are high cost-effective variable displacement double vane pump , the flow and pressure can be adjusted, they are low noise, small size, high efficiency, energy saving, suitable for grinding machine, machine tools, engineering machinery and other equipment.
Features and Benefits
• Low temperature rise: automatically adjust the flow, reduce the power loss, and optimize the oil discharge, effectively heat transfer.
• Low noise: special three-point support is adopted to eliminate vibration and run quietly.
• High efficiency: precision machining, close tolerance, improved volumetric efficiency.
• Long life: It adopts high-quality materials and structural optimization design to ensure long-term and reliable operation of the products.
Applications:
• Grinding machine
• Machines tools
• automobile machinery

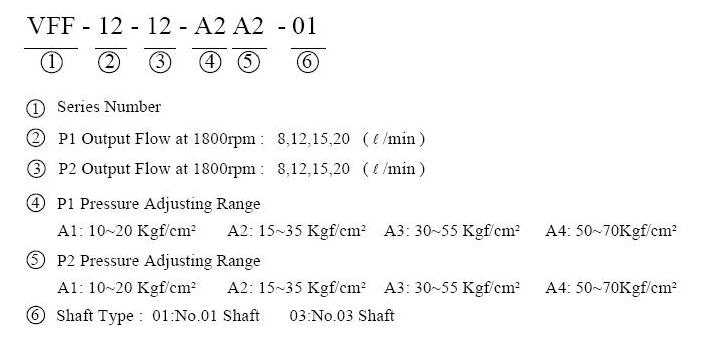

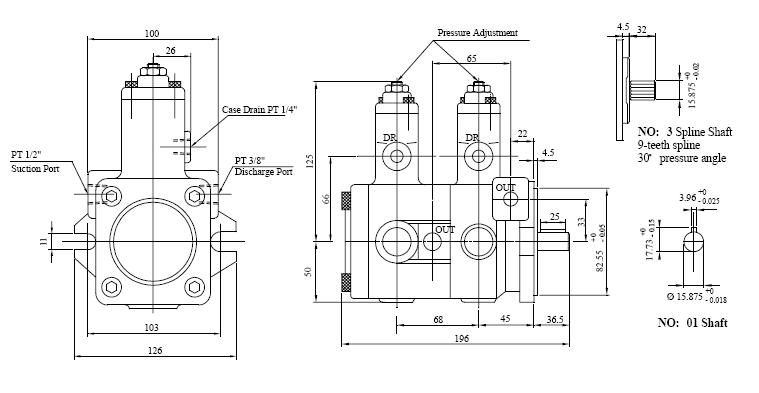

VFF-8, 12, 15, 20 dimensions:

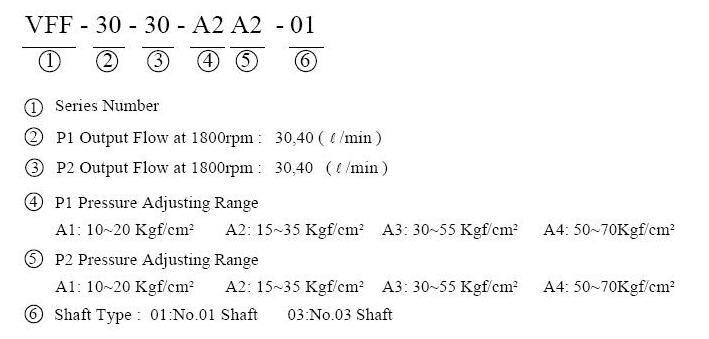

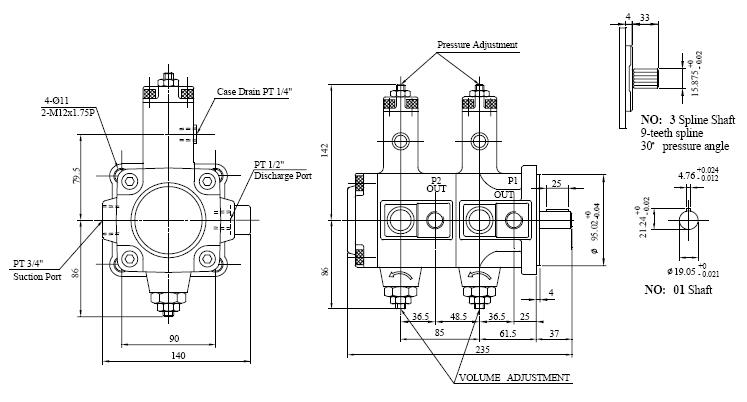

VFF-30, 40 dimensions:
| Model | P1 Output Flow (L/min at 1800rpm) | P2 Output Flow (L/min at 1800rpm) | P1 Operating Pressure (kgf/cm²) | P2 Operating Pressure (kgf/cm²) | Rated Speed (rmp) | |
| MAX | MIN | |||||
| VFF-08-08 | 08 | 08 | A1：10-20 A2：15-35 A3：30-55 A4：50-70 | A1：10-20 A2：15-35 A3：30-55 A4：50-70 | 1800 | 800 |
| VFF-12-12 | 12 | 12 | ||||
| VFF-15-15 | 15 | 15 | ||||
| VFF-20-20 | 20 | 20 | ||||
| VFF-30-30 | 30 | 30 | ||||
| VFF-40-40 | 40 | 40 | ||||
