VQ Series Double Vane Pump

VQ double vane pump

Description:

VQ series intravane pumps provide volumetric efficiencies of more than 90% and sound levels as low as 62 dB(A) with operating pressures to 207 bar (3000 psi). VQ double pumps provide a single power source capable of serving two separate hydraulic circuits, or of providing greater volume through the combined delivery of both sections. provide longer life, increased productivity and application versatility. Extremely low sound levels are compatible with the most demanding industrial applications.

Features and Benefits

• High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
• Low noise characteristics inherent in intravane design enhance operator comfort.

• Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
• Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
• Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation flexibility and ease of machine design.

[vc_tta_tabs] [vc_tta_section title="Ordering Code" tab_id="2033"]

2520VQ ordering code:

vickers vq pump order code

2525VQ ordering code:

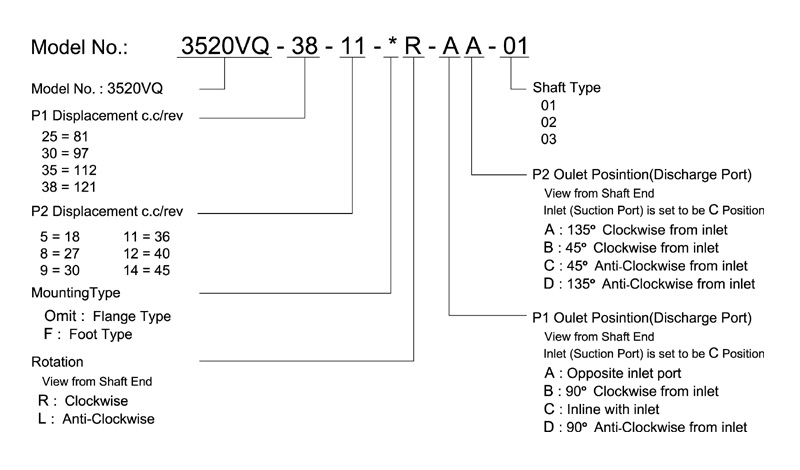

3520VQ ordering code:

vickers vq pump order code

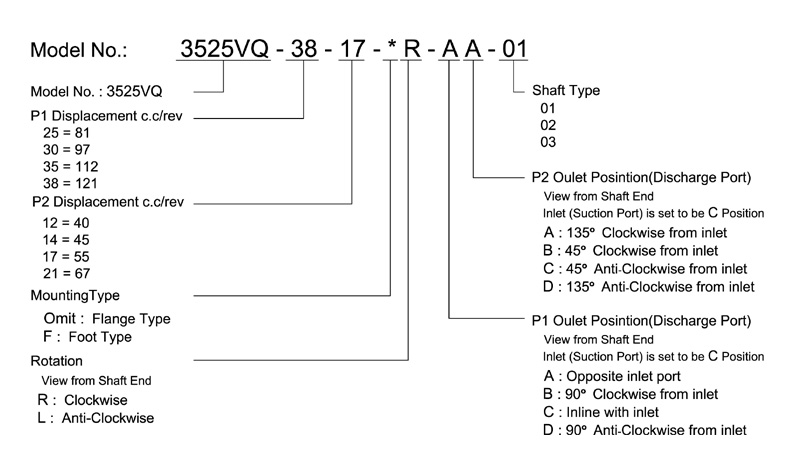

3525VQ ordering code:

vickers vq pump order code

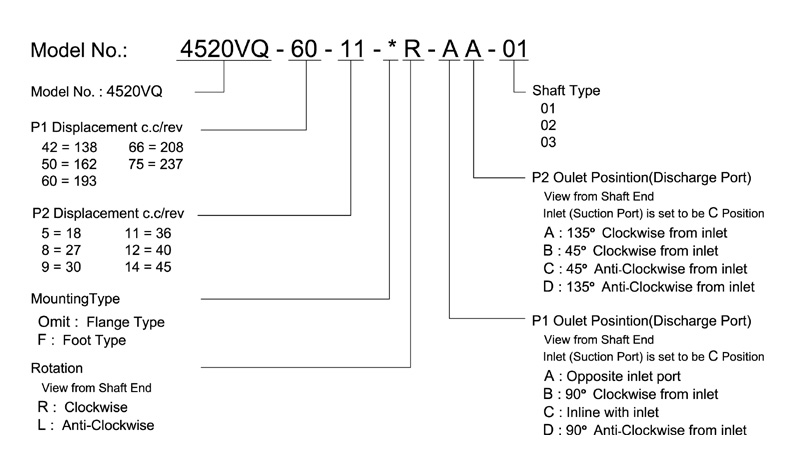

4520VQ ordering code:

vickers vq pump order code

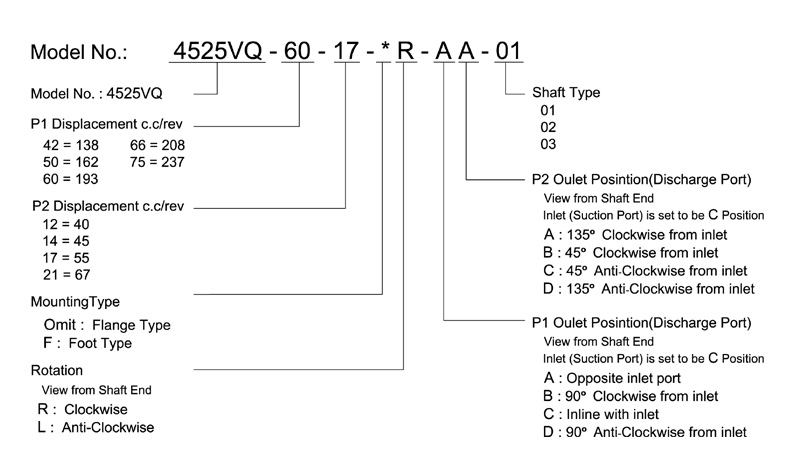

4525VQ ordering code:

vickers vq pump order code

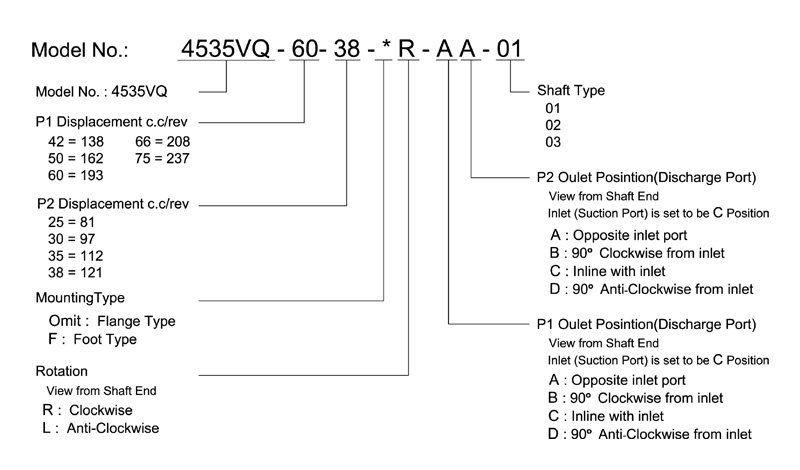

4535VQ ordering code:

vickers vq pump order code

[/vc_tta_section] [vc_tta_section title="Dimensions" tab_id="2133"]

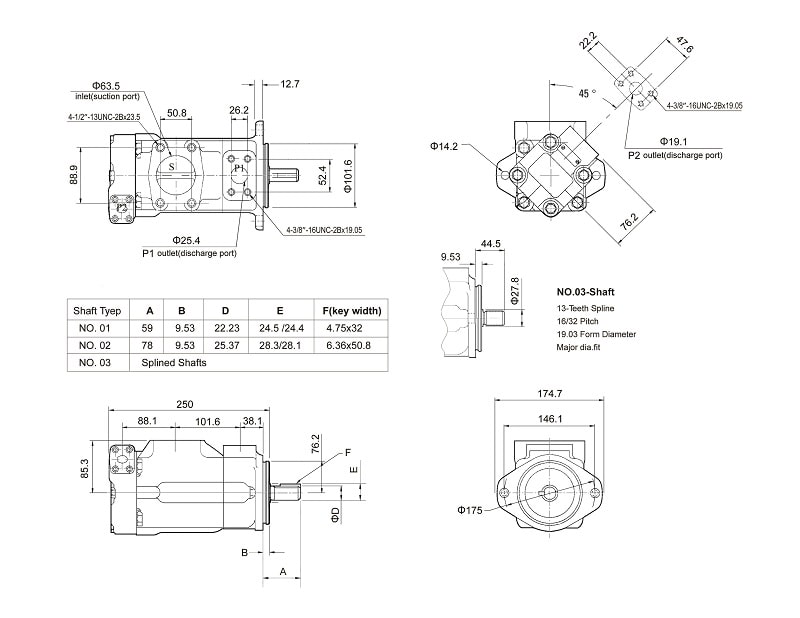

2520VQ Dimensions:

2520V pump dimension

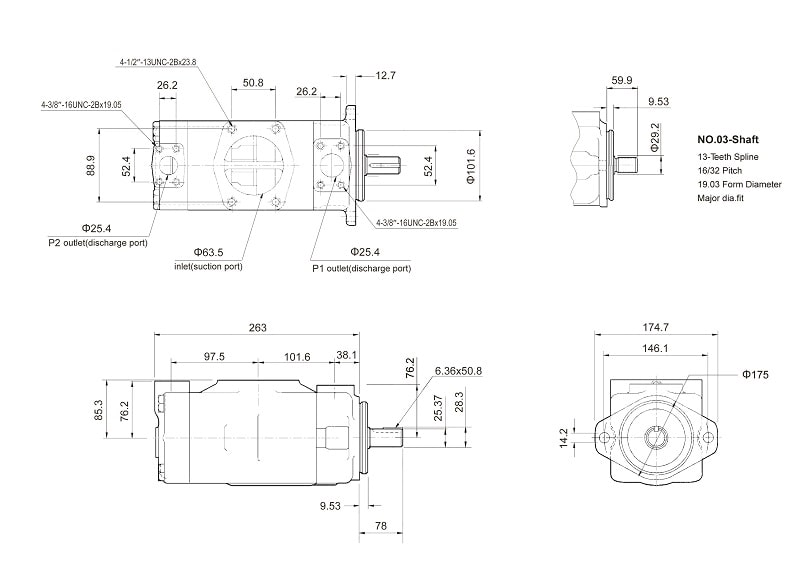

2525VQ Dimensions:

2525V

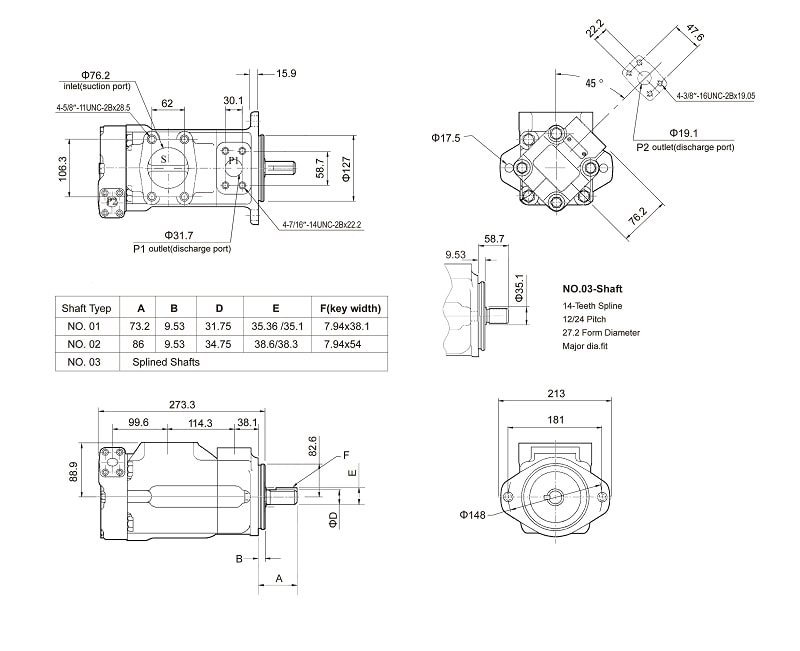

3520VQ Dimensions:

3520V pump

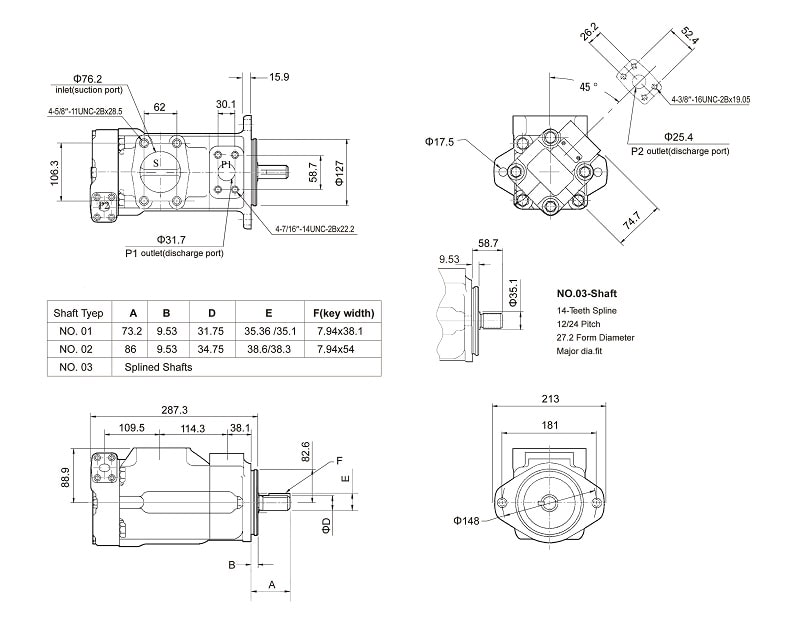

3525VQ Dimensions:

3525v

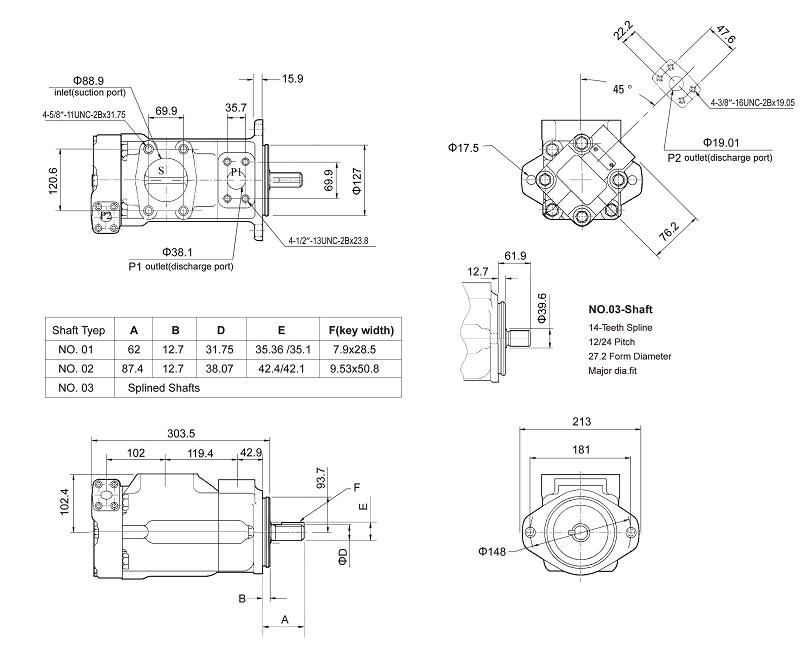

4520VQ Dimensions:

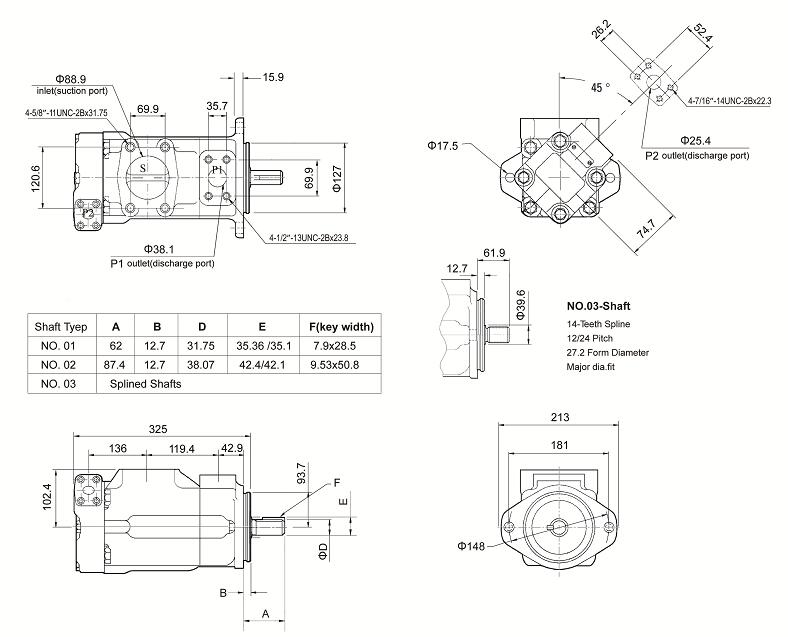

4525VQ Dimensions:

4525v

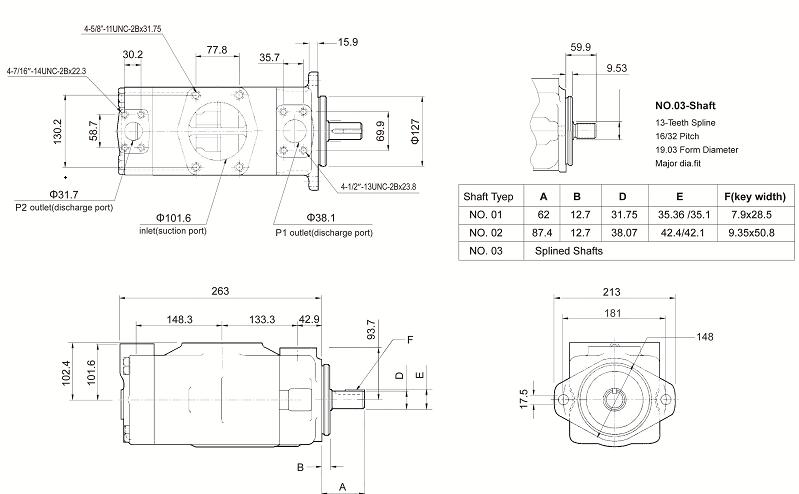

4535VQ Dimensions:

4535v

[/vc_tta_section] [vc_tta_section title="Specifications" tab_id="2233"]
Model P1   Shaft End Pumps P2  Cover-end Pumps Weight
Displacement  code Geometric displacement mL/r Max. speed rpm Max. pressure MPa Displacement  code Geometric displacement mL/r Max. speed rpm Max. pressure MPa kg
2520VQ 12 40 2700 21 5 18 2700 21 21
14 45 8 27
17 55 2500 11 36
21 67 12 40 16
14 45 14
3520VQ 25 81 2500 21 5 18 2500 21 34
30 97 8 27
35 112 2400 11 36
38 121 12 40 16
14 45 14
3525VQ 25 81 2500 21 12 40 2500 21 35
30 97 14 45
35 112 2400 17 55
38 121 21 67
4520VQ 42 138 2200 17.5 5 18 2200 21 43
50 162 8 27
60 193 11 36
66 208 12 40 16
75 237 14 14 45 14
4525VQ 42 138 2200 17.5 12 40 2200 21 46
50 162 14 45
60 193 17 55
66 208 21 67
75 237 14
4535VQ 42 138 2200 17.5 25 81 2200 21 53
50 162 30 97
60 193 35 112
66 208 38 121
75 237 14
[/vc_tta_section][/vc_tta_tabs]
