VQ Series Single Vane Pump

Description:

VQ series intravane pumps provide volumetric efficiencies of more than 90% and sound levels as low as 62 dB(A) with operating pressures to 207 bar (3000 psi). provide longer life, increased productivity and application versatility. Extremely low sound levels are compatible with the most demanding industrial applications.

Features and Benefits

• High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
• Low noise characteristics inherent in intravane design enhance operator comfort.
• Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
• Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
• Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation flexibility and ease of machine design.

• Ordering Code
• Dimensions
• CHARACTERISTICS

• 20VQ ordering code:
• 25VQ ordering code:
• 35VQ ordering code:
• 45VQ ordering code:

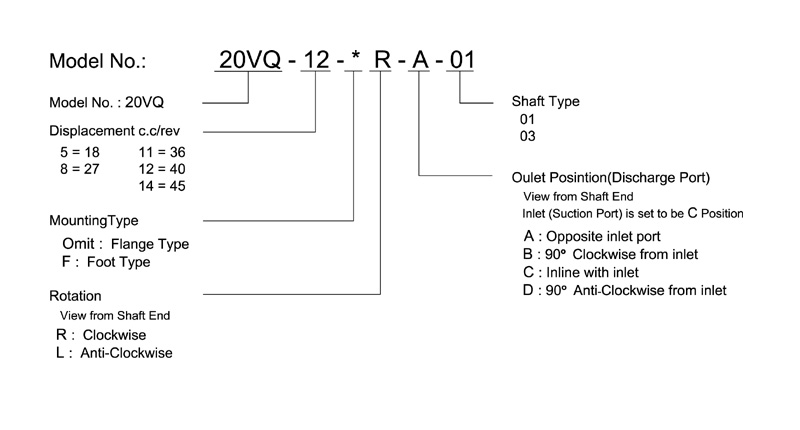

20VQ ordering code:

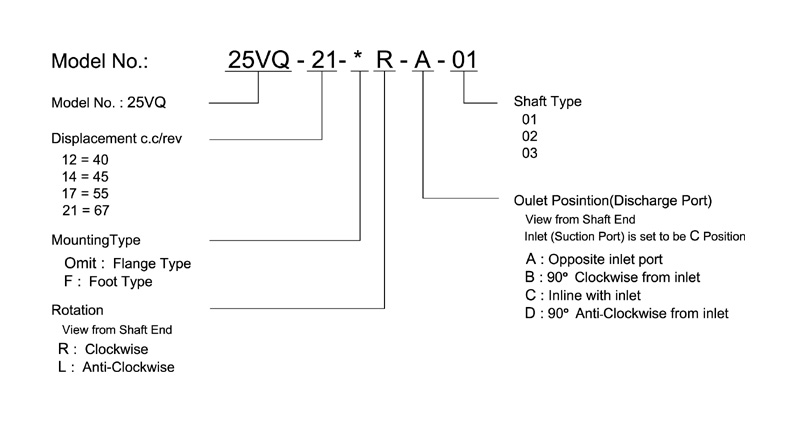

25VQ ordering code:

35VQ ordering code:

45VQ ordering code:

• 20VQ dimensions:
• 25VQ dimensions:
• 35VQ dimensions:
• 45VQ dimensions:

20VQ dimensions:

25VQ dimensions:

35VQ dimensions:

45VQ dimensions:

Model	Displacement code	Geometric                      displacement                    mL/r	VQ series		Weight
			Max. speed rpm	Max. pressure MPa	kg
20VQ	5	18	2700	21	12
	8	27
	11	36
	12	40		16
	14	45		14
25VQ	12	40	2700	21	14.8
	14	45
	17	55	2500
	21	67
35VQ	25	81	2500	21	22.7
	30	97
	35	112	2400
	38	121
45VQ	42	138	2200	17.5	34
	50	162
	60	193
	66	208
	75	237		14
